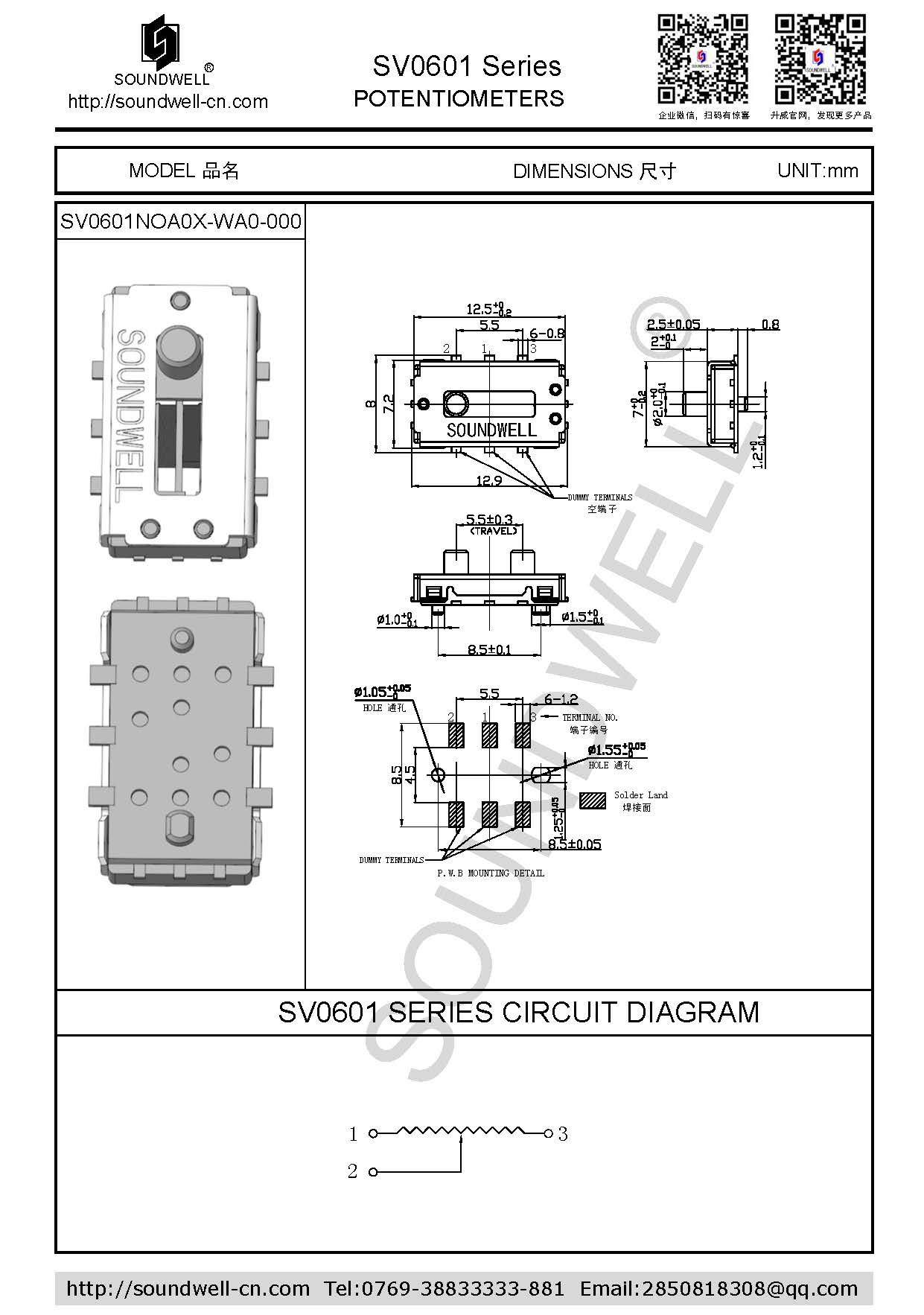

| Potentiometer model： | SV0601 series |
| Name： |
5.5mm Travel Slide Potentiometer |
| Main Specifications: |
Travel: 5.5mm; |
| Product Features： |
Small size; Applicable for SMT reflow soldering. |
| Applications： |
Volume control for headphones |
ONE、MECHANICAL CHARACTERISTIC
1. Sliding force: ≤50gf
2. Slide Travel: 5.5mm
TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: (1KΩ~100 KΩ )±20%
2. Rated power: 0.025W
3. Rated voltage: AC 5V
4. Slide noise: ＜100mV
THREE、ENDURANCE CHARACTERISTIC
1. Operating life: 10,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval
sheet", it's subject to the "Approval sheet".
